Detail produk:
|
| Saat ini: | 0,63A (REF) | Waktu Aktuasi: | 10ms |
|---|---|---|---|
| Aplikasi: | Mekanisme penguncian, otomotif, mesin penjual otomatis | Tipe pemasangan: | Pemasangan Flensa |
| Kisaran suhu pengoperasian: | -20°C hingga 70°C | Suhu pengoperasian: | -20°C hingga 80°C |
| Ketahanan kumparan: | 10 Ohm | Tahan isolasi: | 50mΩ mnt, DC500V |
| Struktur: | Tarik dorong | Perlawanan: | AT20 ℃ (merah dan putih 13Ω ± 10%) |
| Ukuran Pelabuhan: | Dikustomisasi | Warna: | Perak |
| Jenis: | Aktuator Elektromekanis | Level Insulaiton: | Kelas H (180 °) |
| Kisaran suhu: | -20°C hingga 80°C |
Packaging and delivery

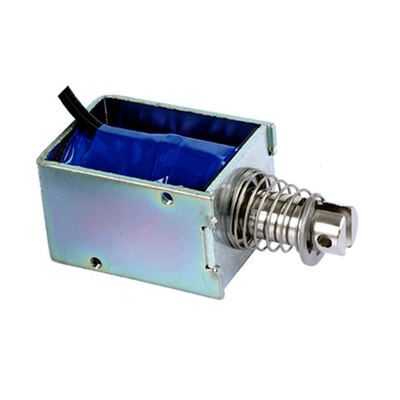

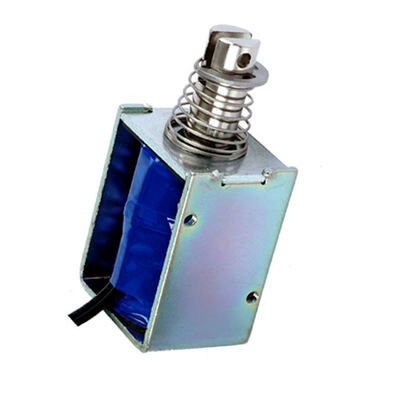

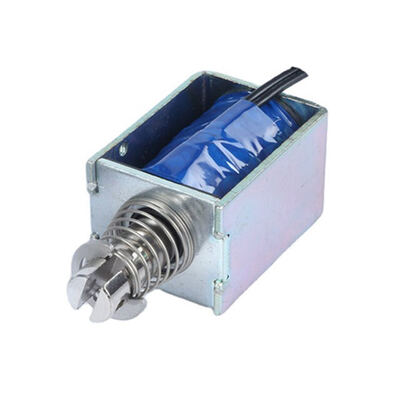

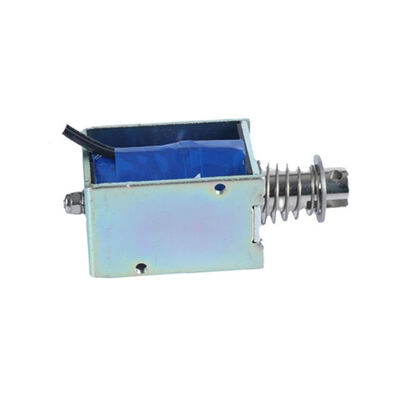

1. Push and pull type optional, linear motion, stroke optional, plunger spring reset (also you can choose not) , Dc power supply, Mini size, standard model voltage have 6v/12v/24v optional, we can custom the voltage as you need.

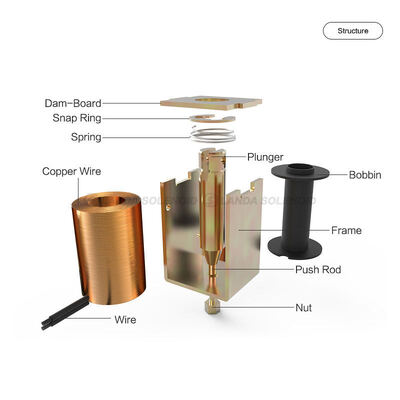

2.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
3. The push pull mini frame solenoid are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.

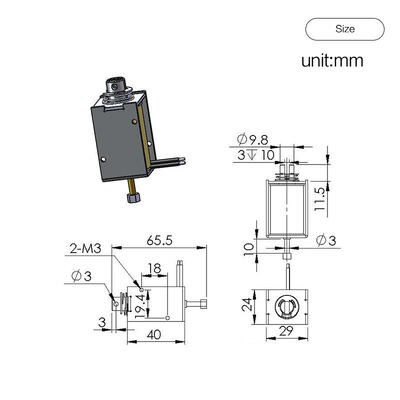

4. Open frame structure with mounting holes, accepted custom as you needed.
