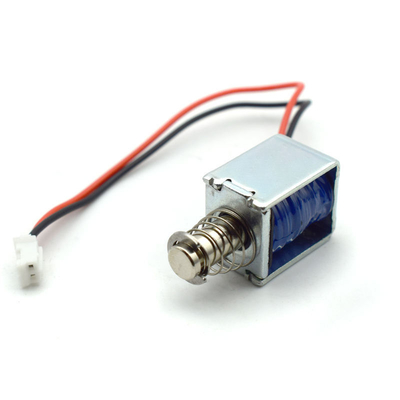

U0620 Wholesale Custom 5v 6v 12v 24V Dc Micro Push Pull Solenoid Lock for Automated Device

Gambar besar : U0620 Wholesale Custom 5v 6v 12v 24V Dc Micro Push Pull Solenoid Lock for Automated Device

Detail produk:

Tempat asal:	CINA
Nama merek:	Dason
Sertifikasi:	ISO9001
Nomor model:	U0620

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	500
Harga:	10USD
Waktu pengiriman:	20 hari
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	500000pcs

Kontak

U0620 Wholesale Custom 5v 6v 12v 24V Dc Micro Push Pull Solenoid Lock for Automated Device

Deskripsi

Karakteristik saat ini:	Dc	Membentuk:	Silinder
Aplikasi:	Industri	Siklus kerja:	0,5 detik, 5 detik
Pengisapan awal:	100g	Tegangan kerja:	3-220VAC, 3-220VDC v
Jenis:	Elektromagnetik	Fungsi:	Mengubah energi listrik menjadi gerakan linier
Saat ini:	Bervariasi tergantung pada aplikasi	Kelembaban relatif:	10%~90%RH
Memaksa:	Bervariasi tergantung pada aplikasi	Stroke:	5mm
Perlawanan:	12Ω	Spesifikasi dan ukuran:	07*30 （mm）
Menahan kekuatan:	≥1000gf	Bahan:	Baja tahan karat
Siklus:	50%	Penggunaan:	mengisap peralatan baterai
Kehidupan Listrik:	300000	Jaminan:	Kebiasaan
Ukuran:	Dapat disesuaikan	Kehidupan Layanan:	500 ribu kali
Kehidupan Mekanis:	1000000	Instal Gaya:	Baut
Ketahanan kumparan:	10Ω

Specifications
Brand	Dason	Product Name	open frame push pull solenoid
Model	U0620	Rated Voltage	DC 12v 24v
Power	1.6-16w	Force	0-1.5N
Stroke	0-5mm	Duty Cycle	10-100%
Cable Length	200mm	Material	Metal, Electronic Parts
Action Form	Push pull type	Weight(N.W.)	0.018kg
Install Style	Screw	Thread Size & Deepth(mm)	2-M2.5
Hi-Pot Test	AC 600V 50/60Hz 2s	Insulation Class	B
Packaging Details
Body Size	201613(mm)	Carton Box Size(Standard)	350310180(mm), accepted custom

Key attributes

Place of Origin

China

Brand Name

Dason

Product Name

push pull solenoid lock for smart device

Material

Iron

Unlock way

magnetic

Type

push pull type

Suitable for

Gym Cabinet

Keyword

Magnetic Door Lock

Certification

CE RoHS ISO

Packaging and delivery

Selling Units

Single item

Single package size

2X1.6X1.3 cm

Single gross weight

0.100 KG

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Product Features

1. Push and pull type optional, linear motion, stroke optional, plunger spring reset (also you can choose not) , Dc power supply, Mini size, standard model voltage have 6v/12v/24v optional, we can custom the voltage as you need.
2.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
3. The push pull mini frame solenoid are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
4. Open frame structure with mounting holes, accepted custom as you needed.

Q: Are you trading company or manufacturer?
A: We are original factory.
Q:How to choose a solenoid/electromagnet?
A:Following parameters should be provided: voltage(DC/AC), power, current, resistance, stoke, force, dimension limit, force,residual force, duty cycle, etc.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock. It is according to
quantity.
Q:What is your terms of payment?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q:Is there any extra charges if we want you to print our logo or company name on your products or the packaging?
A:There is no extra charges. Please offer us the LOGO files, and we will make it well on your product.
