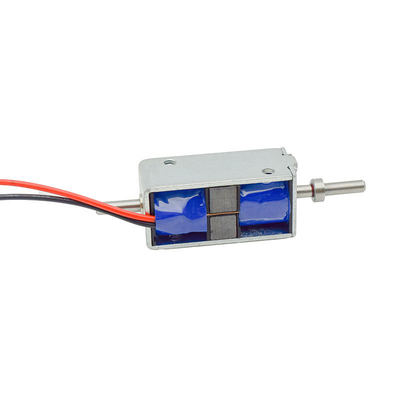

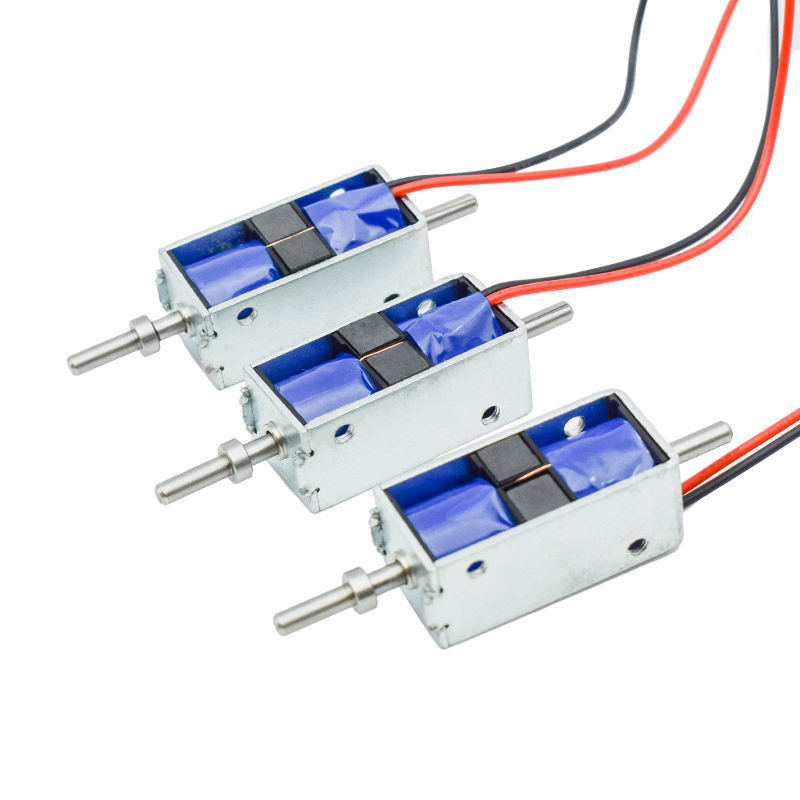

KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid

KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid
KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid

Gambar besar :  KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid

Detail produk:
Tempat asal: CINA
Nama merek: Dason
Sertifikasi: ISO9001
Nomor model: KS0735
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 500
Harga: 10USD
Waktu pengiriman: 20 hari
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 500000pcs
Kontak

KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid

Deskripsi
Karakteristik saat ini: Dc Membentuk: Silinder
Aplikasi: Perangkat elektromekanis Siklus kerja: 0,5 detik, 5 detik
Pengisapan awal: 300 gram Tegangan kerja: 3-220VAC, 3-220VDC v
Jenis: Bistable Fungsi: Mengubah energi listrik menjadi gerakan linier
Saat ini: Bervariasi tergantung pada aplikasi Kelembaban relatif: 10%~90%RH
Memaksa: Bervariasi tergantung pada aplikasi Stroke: Bervariasi tergantung pada aplikasi
Perlawanan: 12Ω Spesifikasi dan ukuran: 11*40 （mm）
Menahan kekuatan: ≥1000gf

Key attributes

Place of Origin
China
Brand Name
Dason



Model Number



KS0735
Type
bistable latching solenoid
Mounting Type
Mounting screw
Description
bistable latching solenoid
Product name
24 volt bistable latching solenoid
Structure
Push Pull Solenoid
Voltage
DC12V 24V
Body material
Cast Iron
Usage
Indusrial
Valve type
Normaly Closed
Certification
CE RoHS ISO
MOQ
2pcs
Keyword
Open Frame Solenoid
Type
SOLENOID VALVES



Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Products Specifications
Brand
Dason
Product Series
Open frame solenoid
Model
KS0735
Voltage
12v/24v dc
Power
21.6w
Force
5N
Stroke
5.2mm
Duty Cycle
10%
Cable Length
200mm or customization
Materials
steel & enamelled wire
Action Form
Push pull type
Weight (N.W.)
0.2kg
Install style
Screw
Thread size & Deepth(mm)
4-M3
Hi-Pot Test
AC 600V 50/60Hz 2s
Insulation Class
B
Packaging details
Body size(mm)
35.4*16*14mm
Packaging box size(cm)
standard:21*14*13(cm), custom accepted





Product Features
1. Push and pull type optional, linear motion, stroke optional, plunger spring reset (also you can choose not) , Dc power supply, Mini size, standard model voltage have 6v/12v/24v optional, we can custom the voltage as you need.
2.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
3. The push pull mini frame solenoid are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
4. Open frame structure with mounting holes, accepted custom as you needed.
KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid 0
KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid 1
KS0735 Miniature Dc 12v Linear 24 Volt Bistable Latching Solenoid 2
Q: Are you trading company or manufacturer?
A: We are original factory.
Q:How to choose a solenoid/electromagnet?
A:Following parameters should be provided: voltage(DC/AC), power, current, resistance, stoke, force, dimension limit, force,residual force, duty cycle, etc.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock. It is according to
quantity.
Q:What is your terms of payment?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q:Is there any extra charges if we want you to print our logo or company name on your products or the packaging?
A:There is no extra charges. Please offer us the LOGO files, and we will make it well on your product.

Label:

14W Jaga Solenoid,

16W Jaga Solenoid,

300g Jaga Solenoid
