| Keuntungan: | Kontrol Gerakan Linier Cepat | Gaya tubuh: | Silinder |
|---|---|---|---|
| Kisaran suhu: | -20°C hingga 80°C | Penggunaan produk: | menyeret |
| Jenis: | Elektromagnetik | Port of Loading: | FOB Shenzhen |
| Potenc: | 300gf | Perlawanan: | AT20 ℃ (merah dan putih 13Ω ± 10%) |
| Jenis pemasangan: | Baut | Membentuk: | Persegi panjang |
| Siklus: | 50% | Prot Lingkungan: | Rohs |
| Abient Temp: | -5 ℃ -45 ℃ | Struktur: | Tarik dorong |
| Ukuran port: | Bisa custom |
| Specifications | |||

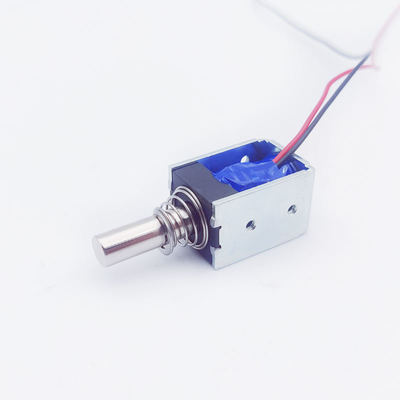

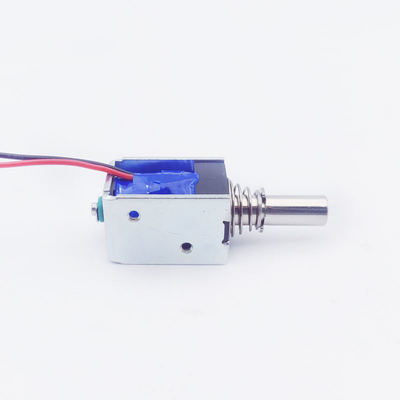

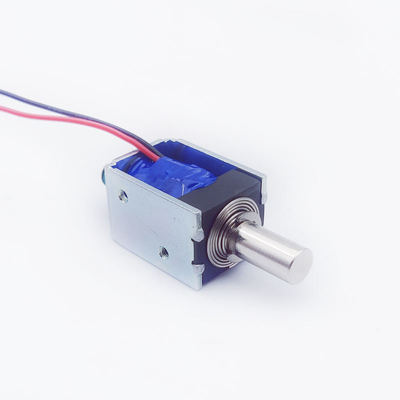

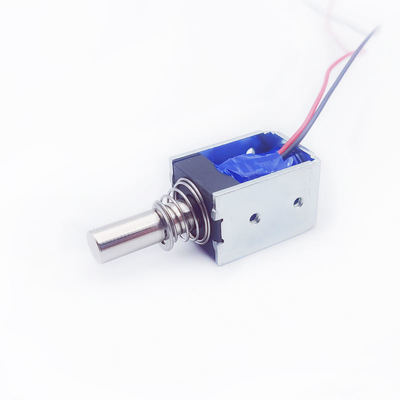

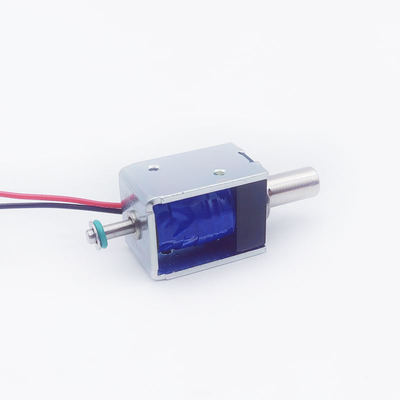

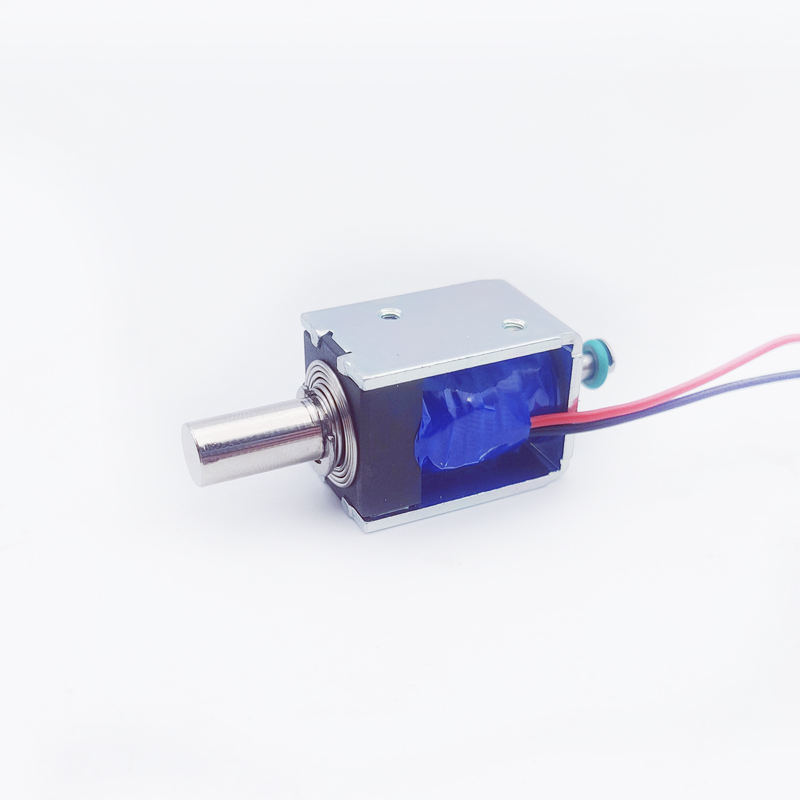

| Brand | Dason | Product Name | open frame push pull solenoid |
| Model | KS0727 | Rated Voltage | DC 12v |
| Power | 14.4w | Holding Force | 20N |
| Stroke | 6mm | Duty Cycle | 50% |
| Cable Length | 200mm | Material | Metal, Electronic Parts |
| Action Form | Push pull type | Weight(N.W.) | 0.3kg |
| Install Style | Screw | Thread Size & Deepth(mm) | 2-M3 |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | 27*19*17(mm) | Carton Box Size(Standard) | 350*310*180(mm), accepted custom |
