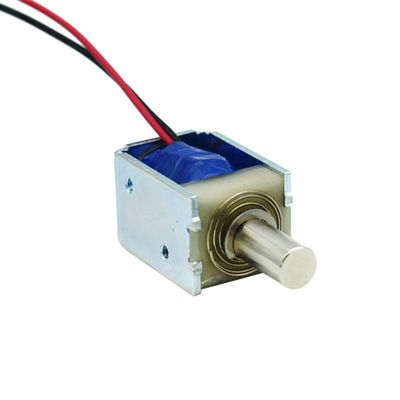

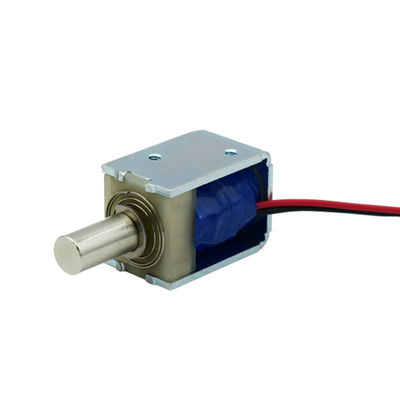

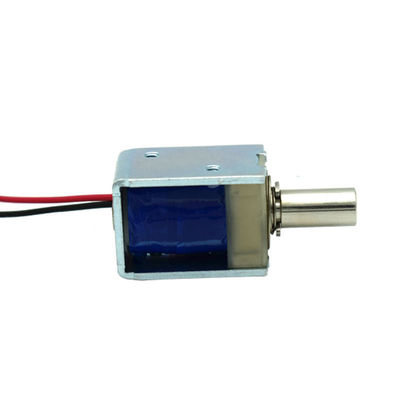

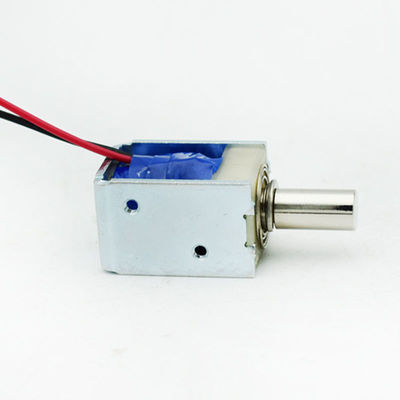

Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching

I 'm Online Chat Now

Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching

Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching
Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching

Gambar besar :  Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching

Detail produk:
Tempat asal: Cina
Nama merek: Dason
Sertifikasi: ISO9001
Nomor model: KS0727-05A05
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 500
Harga: 10USD
Waktu pengiriman: 20 hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 500000pcs

Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching

Deskripsi

Specifications
Brand Dason Product Name mini frame solenoid
Model XSQ0727-05A05 Voltage DC 5V
Power 5w Force -N
Stroke 5mm Duty Cycle 10-100%
Cable Length 200mm Material Metal, Electronic Parts
Action Form Push pull type Weight(N.W.) 0.01kg
Install Style Screw Thread Size & Deepth(mm) 2-M2.5
Hi-Pot Test AC 600V 50/60Hz 2s Insulation Class B
Packaging Details
Body Size 27.5*19*17 (mm) Carton Box Size(Standard) 350*310*180(mm), accepted custom



Product Features

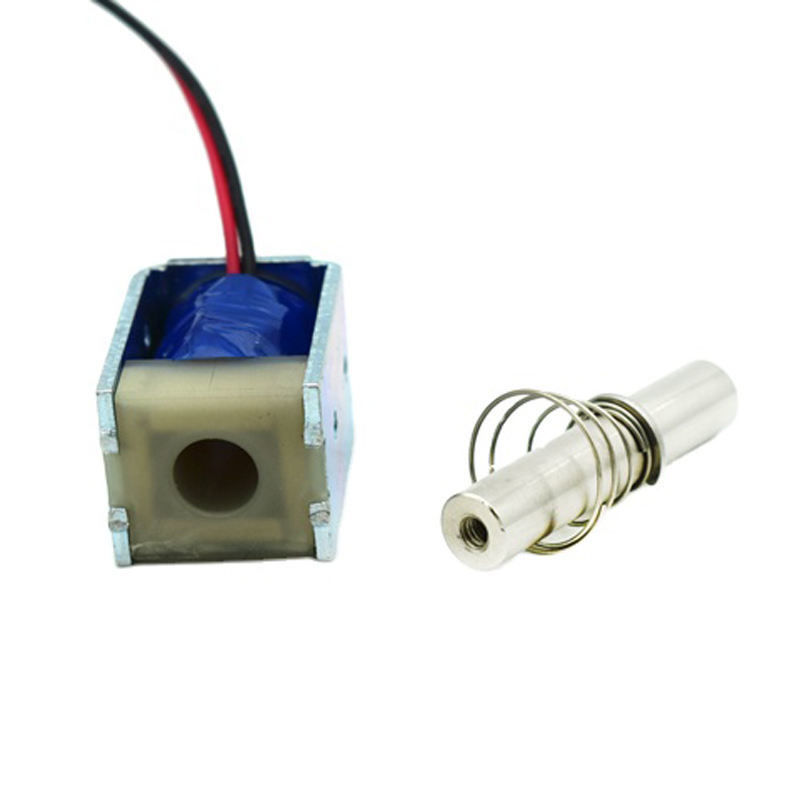

1. Push and pull type optional, linear motion, stroke optional, plunger spring reset (also you can choose not) , Dc power supply, Mini size, standard model voltage have 6v/12v/24v optional, we can custom the voltage as you need.

2.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.

3. The push pull mini frame solenoid are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.

4. Open frame structure with mounting holes, accepted custom as you needed.

Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching 0

Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching 1



Our Products:
circular holding solenoid; square holding solenoid; open frame solenoid; tubular solenoid; keep solenoid; lock solenoid >>HOMEPAGE
MOQ:
2 PCS; small orders can be acceptable if we have stocks of this product
Packing:
Carton, standard dimension(L*W*H): 350*310*180, customize according to customer's requirement
Delivery Time:
Shipped in 3-8 days after payment
Supply Ability:
5000Pcs per week
Payment Terms:
T/T; PAYPAL etc.
Shipping:
Sea /air freight, Express (DHL, UPS, TNT, FEDEX, EMS etc).



Push Pull Open Frame Solenoid 12v 24v Bistable Solenoid for Locker Latching 2
